MINI-ITX Motherboard with 8/9/10th Gen. 45W TDP Processor

MINI-ITX Motherboard with 8/9/10th Gen. H Series Processor ( 45W TDP)

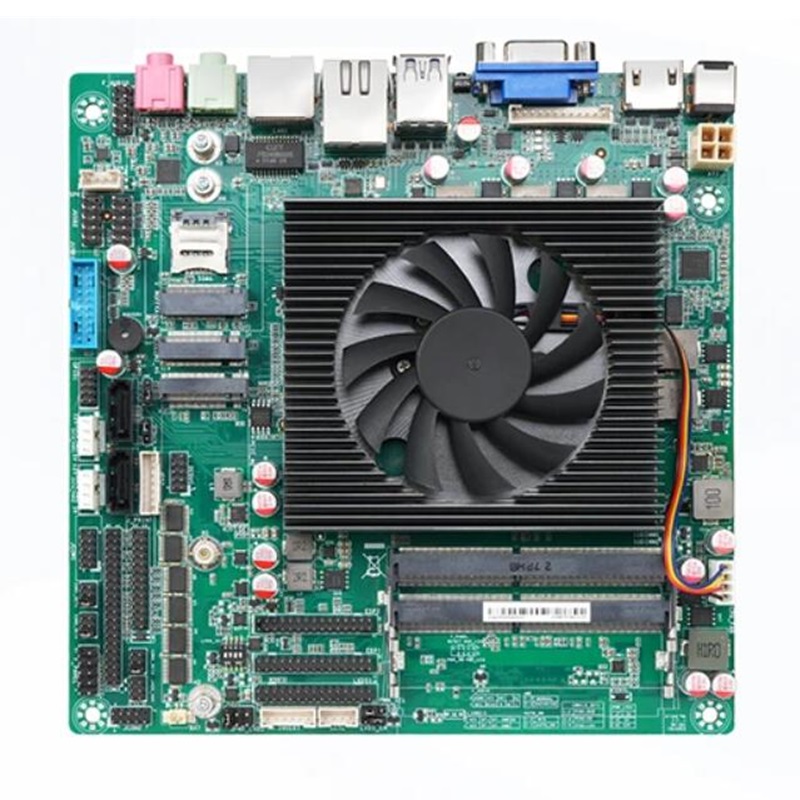

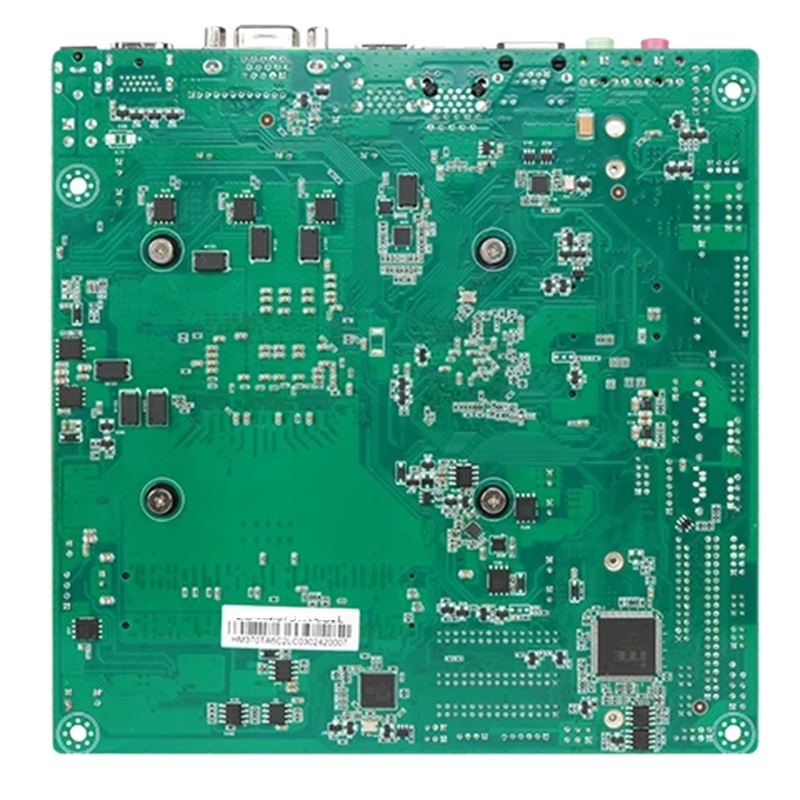

IESP-6486-XXXXH Industrial Embedded MINI-ITX SBC is designed to accommodate Intel 8th/9th/10th High Performance H Series Processors. It offers high-performance computing capabilities suitable for industrial applications.
Memory: It features 2 SO-DIMM slots that support DDR4 2666MHz memory modules, with a maximum capacity of up to 64GB.
Displays: The board supports multiple display options, including HDMI, DEP2, VGA, and LVDS/DEP1, providing flexibility in connecting various display devices.
Audio: It is equipped with Realtek ALC269 HD Audio, ensuring high-quality audio output.
Rich I/Os: The board offers a wide range of I/O interfaces, including 6 COM ports, 10 USB ports, GLAN (Gigabit LAN), and GPIO (General Purpose Input/Output), allowing for versatile connectivity options.
Storage: It provides 1 SATA3.0 interface and 1 M.2 KEY M slot, enabling efficient storage solutions.
Power Input: The board supports a voltage input range of 12~19V DC, ensuring compatibility with different power sources.

Processor Options
Intel® Core™ i5-8300H Processor 8M Cache, up to 4.00 GHz
Intel® Core™ i5-9300H Processor 8M Cache, up to 4.10 GHz
Intel® Core™ i5-10500H Processor 12M Cache, up to 4.50 GHz

Post time: Jan-16-2024
