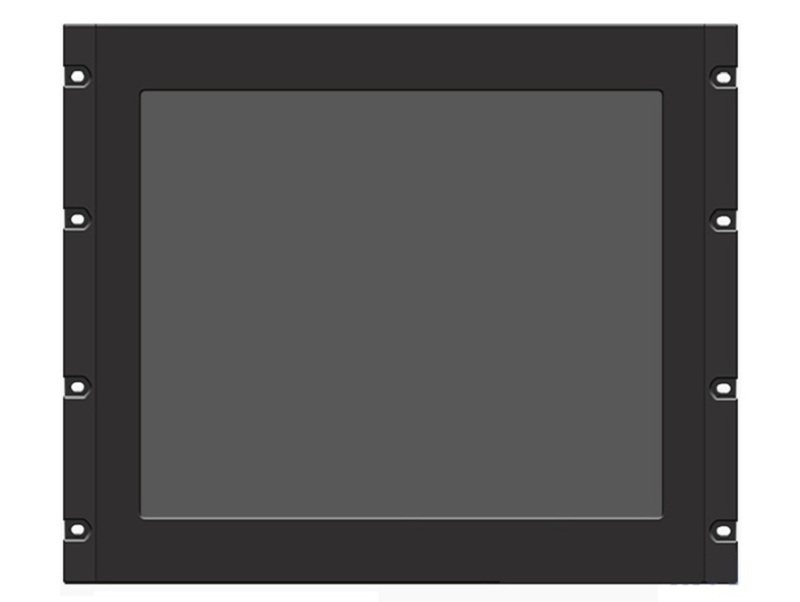

17″ LCD Customizable 8U Rack Mount Fanless Industrial Panel PC
IESP-5217-XXXXU the customized 8U rack mount industrial panel PC is a high-performance computer designed for use in industrial environments. The device is equipped with an onboard Core i3/i5/i7 processor that provides powerful processing capabilities to handle complex tasks and applications.
The industrial-grade TFT LCD display on the device is 17" and has a resolution of 1280*1024, providing clear visuals of data and images. The 5-wire resistive touchscreen of the panel PC also features industrial grade specifications and allows easy interaction with the device's software interface. Both the display and touchscreen are built to withstand harsh working conditions.
The rich external I/Os provide connectivity options that enable users to connect various input/output devices and peripherals such as USB, Ethernet, HDMI, VGA, and others based on the specific requirements of customization.
IESP-5217-XXXXU supports both rack mount and VESA mount systems, making it simple to integrate into existing setups. It also includes deep custom design services, which allow for customization of internal hardware options, external ports, or firmware depending on individual needs.
Furthermore, this rack mount industrial panel PC comes with a 5-year warranty, ensuring long-term support and maintenance required for any issues related to the device.
Dimension
| IESP-5217-8265U | ||
| 17-inch Rack Mount Industrial Panel PC | ||
| SPECIFICATION | ||
| System Configuration | CPU | Onboard Intel® Core™ i5-8265U Processor 6M Cache, up to 3.90 GHz |
| CPU Options | Support 4/6/8/10/11th Core i3/i5/i7 Mobile Processor | |
| Integrated Graphics | Intel UHD Graphics | |
| System RAM | 4/8/16/32/64GB DDR4 System RAM | |
| System Audio | Realtek HD Audio | |
| System Storage | 128GB/256GB/512GB SSD | |
| WLAN | WIFI Module optional | |
| WWAN | 3G/4G/5G Module optional | |
| OS Supported | Windows 10/11 OS; Ubuntu16.04.7/18.04.5/20.04.3 | |
| Display | LCD Size | 17″ Sharp/AUO TFT LCD, Industrial Grade |
| LCD Resolution | 1280*1024 | |
| Viewing Angle(L/R/U/D) | 85/85/85/85 | |
| Number of Colors | 16.7M Colors | |
| Brightness | 400 cd/m2 (High Brightness Optional) | |
| Contrast Ratio | 1000:1 | |
| Touchscreen | Type | Industrial Grade 5-Wire Resistive Touchscreen |
| Light Transmission | Over 80% | |
| Controller | Industrial Grade EETI USB Touchscreen Controller | |
| Life Time | Over 35 million times | |
| Cooling System | Cooling Mode | Fan-less Design, Cooling By Aluminum Fins Of Rear Cover |
| External I/Os | Power Interface | 1*2PIN Phoenix Terminal DC IN |
| Power Button | 1*Power Button | |
| USB Ports | 4*USB3.0 | |
| Display Output | 1*HDMI, 1*VGA | |
| Ethernet | 1*RJ45 GLAN (2*RJ45 GbE LAN Optional) | |
| HD Audio | 1*Audio Line-Out & MIC-IN, 3.5mm Standard Interface | |
| COM Ports | 4*RS232 (6*RS232/RS485Optional) | |
| Power | Power Requirement | 12V DC IN (9~36V DC IN, ITPS Power Module optional) |
| Power Adapter | Huntkey 84W Power Adapter | |
| Power Input: 100 ~ 250VAC, 50/60Hz | ||
| Power Output: 12V @ 7A | ||
| Physical Characteristics | Front Bezel | 6mm Aluminum Panel, IP65 Protected |
| Chassis | 1.2mm SECC Sheet Metal | |
| Mounting Solution | Rack Mount & VESA Mount(100*100) | |
| Chassis Color | Black (Other Color optional) | |
| Dimensions | W482.6 x H310 x D59.2mm | |
| Environment | Temperature | 10°C~60°C |
| Relative Humidity | 5% – 90% relative humidity, non-condensing | |
| Stability | Vibration protection | IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms | |
| Authentication | With FCC, CCC | |
| Others | Long Warranty | 3/5-Year Warranty |
| Speakers | 2*3W Speaker optional | |
| OEM/ODM | Optional | |
| ACC Ignition | ITPS Power Module optional | |
| Packing List | 17inch Industrial Panel PC, Power Adapter, Power Cable | |
