Industrial MINI-ITX Board-Intel 12th Core i5-1235U Processor

Key Features:

• Industrial High Performance MINI-ITX Embedded Board

• Onboard Intel 12th Gen. Core i5-1235U Processors

• System RAM: 2 x SO-DIMM DDR4 3200MHz, up to 64GB

• System Storage: 1 x SATA3.0, 1 x M.2 KEY M

• Displays: LVDS/EDP, HDMI, VGA

• HD Audio: Realtek ALC897 Audio Ddecoding Controller

• Rich I/Os: 6COM/9USB/2GLAN/GPIO

• Support 12~19V DC IN

GET A QUOTATION

Overview

Specifications

Product Tags

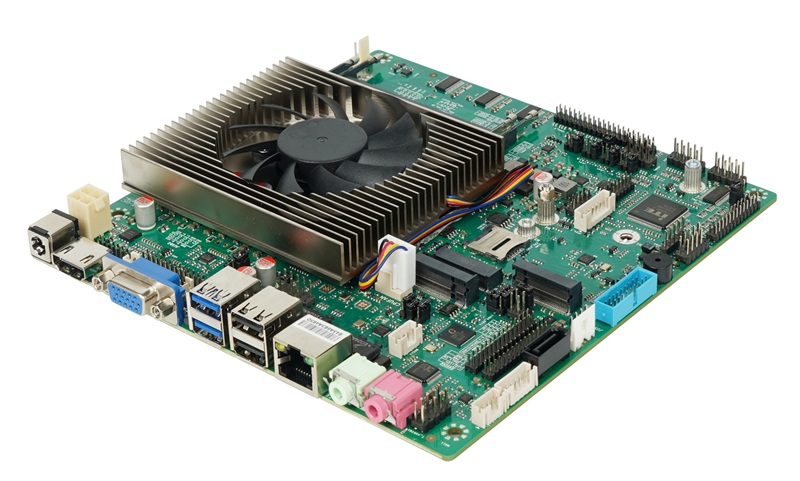

The IESP-64122 is a MINI-ITX industrial motherboard compatible with Intel 12th/13th Gen Alder Lake/Raptor Lake CPUs including U series. It adopts dual-channel SO-DIMM DDR4 RAM up to 64GB. Supporting synchronous & asynchronous 4-display output with LVDS/EDP, HDMI and VGA, it fits multi-screen monitoring applications. It comes with dual Intel Gigabit LAN, 9 USB ports (3×USB3.2 + 6×USB2.0) and 6 configurable COM ports (TTL/RS232/422/485 optional). Storage includes one M.2 M Key slot (SATA3/PCIe x4) and one SATA3.0 port. With 12–19V wide-range DC power input and one-key system backup & restore function, this board is ideal for industrial control and multi-display projects.

Previous: Industrial MINI-ITX Board-Intel 12/13th Alder lake/Raptor Lake Processor

Next: Industrial MINI-ITX Board-6th Gen. Processor

Industrial MINI-ITX SBC – 12th Gen. Core i3/i5/i7 U series Processor
IESP-64122-1235U
Industrial MINI-ITX SBC
SPECIFICATION
Processor	Onboard Intel 12th Core i5-1235U Processor
BIOS	AMI BIOS
Memory	2 x SO-DIMM, DDR4 3200MHz, up to 64GB
Storage	1 x M.2 M Key, support PCIEX2/SATA
Storage	1 x SATA III
Graphics	Intel® UHD Graphics
Graphics	Displays: LVDS+ HDMI+VGA
Audio	Realtek ALC897 Audio Ddecoding Controller
Audio	Independent amplifier, NS4251 3W@4 Ω MAX
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel i219-V+ i210AT)

External I/Os	1 x HDMI
	1 x VGA
	1 x 10/100/1000 Mbps Ethernet (2*GLAN optional)
	1 x Audio Line-out & MIC-in
	2 x USB3.2, 2 x USB2.0
	1 x DC Jack For Power Supply

On-board I/Os	6 x COM, RS232 (COM2: RS232/422/485, COM3:RS232/485)
	5 x USB2.0
	1 x GPIO (4-Bit)
	1 x LPT
	1 x PCIEX4 Expansion Slot
	1 x LVDS/EDP
	1 x VGA
	1 x HDMI
	1 x Speaker Connector (3W@4Ω MAX)
	1 x F-audio Connector
	1 x PS/2 For MS & KB
	1 x SATA III Interface
	1 x TPM

Expansion	1 x M.2 E Key (For Bluetooth & WIFI6 )
Expansion	1 x M.2 B KEY ( Support 4G/5G Module)

Power Supply	Support 12~19V DC IN
Power Supply	Auto power on supported

Temperature	Working Temperature: -10°C to +60°C

Humidity	5% – 95% relative humidity, non-condensing

Dimensions	170 x 170 MM

Thickness	1.6 mm

Certifications	CCC/FCC
