3.5 inch Industrial SBC-with 12/13th Gen. Core i3/i5/i7 processor

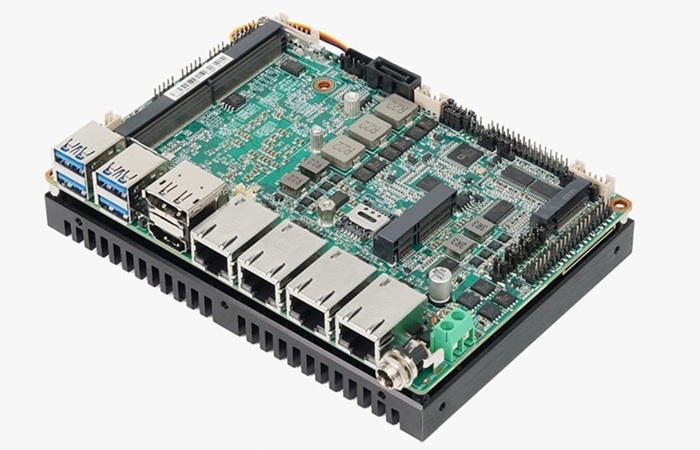

The IESP-63131-XXXXU is an industrial embedded motherboard designed to support Intel 12/13th Gen. Core i3/i5/i7 Mobile processors. It features a DDR5-4800 MHz memory support, with a maximum capacity of 32GB. The external I/O ports include 4*USB ports, 4*RJ45 GLAN ports, 1*HDMI port, 1*DP, providing connectivity options for various devices.
In terms of onboard I/Os, it offers 4 COM ports, 4 additional USB ports, 1 LVDS/eDP port, and GPIO support. Expansion capabilities are provided through 1* M.2 slot & 1*MINI PCIE Slot, allowing for flexibility in adding additional hardware components.
The motherboard is designed to operate within a power input range of 9~36V DC, making it suitable for industrial applications. With dimensions of 146mm * 102mm, it offers a compact form factor for space-constrained environments.
Overall, the IESP-63131-XXXXU industrial embedded motherboard provides a robust and versatile platform for industrial computing needs, combining performance, connectivity, and expansion options in a compact design.
| Ordering Information | |||
| IESP-63131-1335U: Intel® Core™ i5-1335U Processor, 12M Cache, up to 4.40 GHz | |||
| IESP-63121-1235U: Intel® Core™ i5-1235U Processor, 12M Cache, up to 4.60 GHz |
| IESP-63131-1335U | |
| Industrial Embedded SBC | |
| Specification | |
| CPU | Onboard Intel 12/13th Gen. Core i5-1235U / Core i5-1335U processor |
| CPU Options: Intel 12/13th Gen. Core i3/i5/i7 Mobile Processor | |
| BIOS | AMI BIOS |
| Memory | 1 x SO-DIMM Slot, Support DDR5-4800, Up to 32GB |
| Graphics | Intel® UHD Graphics for 12/13th Gen Intel® Processors |
| External I/O | 1 x HDMI |
| 1 x DP | |
| 4 x Intel GLAN (1*I226, 3*I210 Ethernet) | |
| 4 x USB3.2 | |
| 1 x DC-IN (9~36V DC IN) | |
| 1 x REC (Clear CMOS, One-key Restore) | |
| On-board I/O | 4 x RS232 (COM2/3: RS232/485) |
| 4 x USB2.0 | |
| 1 x 8-bit GPIO | |
| 1 x LVDS Connector (eDP optional) | |
| 1 x F_Audio Connector | |
| 1 x 4-PIN Speaker Connector | |
| 1 x SATA3.0 Connector | |
| 1 x 4-PIN HDD Power Supply Connector | |
| 1 x 3-PIN CPU Fan Connector | |
| 1 x 6-pin PS/2 For keyboard & mouse | |
| 1 x SIM Slot | |
| 1 x 2-PIN DC-IN Connector | |
| Expansion | 1 x M.2 Key M Support SATA SSD |
| 1 x MINI PCIE Slot, Support Wifi+Bluetooth (or 4G module) | |
| Power Input | 9~36V DC IN |
| Temperature | Operating Temperature: 0°C to +60°C |
| Storage Temperature: -20°C to +80°C | |
| Humidity | 5% – 95% relative humidity, non-condensing |
| Dimensions | 146 x 102 MM |
| Warranty | 2-Year |
| CPU Options | IESP-63131-1335U: Intel® Core™ i5-1335U Processor, 12M Cache, up to 4.60 GHz |
| IESP-63121-1235U: Intel® Core™ i5-1235U Processor, 12M Cache, up to 4.40 GHz | |
