Industrial Computer Support Intel 12th/14th Gen. Processor- 1 * PCIe3.0 x16
IESP-3760S-L6G4-Z390 is a customizable high-performance industrial BOX PC. It supports 6th, 7th, 8th, and 9th generation LGA1151 processors, including Celeron, Pentium, Core i3, i5, and i7.
In terms of memory, it has 2*SO-DIMM DDR4-2400MHz RAM sockets with a maximum capacity of up to 64GB.
For storage, it provides 1*2.5" drive bay, 1*MSATA slot, and 1*M.2 Key-M socket, allowing for flexible storage options.
The product also offers a rich selection of I/O ports, including 6*COM ports, 10*USB ports, 2*Gigabit LAN ports, VGA, HDMI, and GPIO, enabling connectivity with various devices and peripherals.
In terms of expansion, it features 2*expansion slots, including 1 PCIe X16 slot and 1 PCIe X8 slot, providing options for further expansion and customization.
The power supply supports DC+9V~36V input in both AT and ATX modes, allowing for versatile power options.
| High Performance Fanless Multi-LAN Industrial PC – PCIe Expansion | ||
| IESP-3760S-L6G4 Series | ||
| LGA1151 6/8/9th Gen (≤45W) | 4COM | 6LAN(4PoE) | PCIe x16 | Light Source | 16DO | ||
| SPECIFICATION | ||
| Chassis | Material/Structure | Aluminum Alloy + Sheet Metal |
| Color | Black | |
| Dimensions | 243*208.5*118.5mm | |
| Weight | 4.6kg | |
| Mounting | Desktop / Embedded | |
| Mainboard | CPU | Intel LGA1151 6/8/9th Gen or LGA1700 12~13th Gen (≤45W TDP) |
| Chipset | Intel Z390 or Q670 | |
| Memory | 2*SODDR4, Max 64GB | |

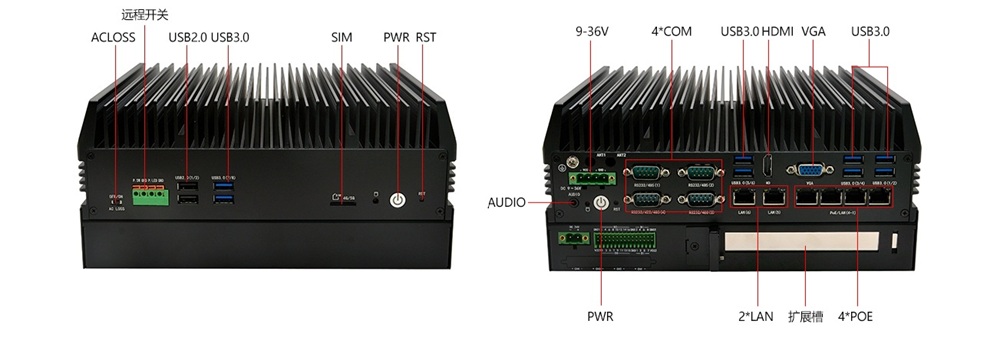

| Front Panel I/O | Switch | 1*Power Button with LED, 1*One-key Recovery, 1*ACLOSS |
| LED | 1*HDD LED | |
| USB | 2*USB3.0, 2*USB2.0, 1*Internal USB2.0 | |
| Remote Switch | 1*Power Switch, 1*Power LED (on 1*4P Phoenix) | |
| SIM | 1*SIM Card Slot | |
| Rear Panel I/O | Display Ports | 1*VGA(1920*1200@60Hz), 1*HDMI1.4 |
| COM | 4*RS232 DB9, COM1~3 RS232/485, COM4 RS232/422/485 | |
| LAN | 6*Intel I210AT Gigabit Ethernet, LAN1~4 PoE (Default Off) | |
| USB | 6*USB3.0 | |
| Audio | 1*Audio, Line-out & MIC 2-in-1 | |
| DIP Switch | 2*6-bit DIP Switch, RS232/485 via DIP + Jumper + BIOS | |
| Power Connector | 1*4P(P=5.08mm) Phoenix, DC 9~36V Input, Max 220W | |
| Switch | 1*Power Switch with LED, 1*One-key Recovery | |
| LED | 1*HDD LED | |
| Light Source | 1-channel Constant-current Light Source 80-level (0-80mA) 3-channel 512-level PWM 24V Light Source (24V/48W) DC24V Power Input (1*2pin Phoenix) |
|
| DIO | 8*DI, 16*DO (2*15pin Phoenix) | |
| Storage | SATA | 1*2.5″ HDD Bay |
| mSATA | 1*mSATA | |
| SSD | 1*M.2 Key-M 2280, NVMe PCIe3.0 X4/SATA Auto SSD | |
| Expansion | PCIe | 1*PCIe3.0 x16 (GPU Length ≤180mm, Blade-style) |
| WiFi | 1*M.2 Key-E 2230, WiFi | |
| 5G | 1*M.2 Key-B 3042/3052, 5G | |
| System Support | OS | Windows 10/11, Ubuntu |
| Power | Voltage Input | DC 9-36V Wide Voltage |
| Power Output | AC to DC 120W Above, Max 220W | |
| Environment | Operating Temperature | -10°C ~ 60°C |
| Relative Humidity | 5%-95% RH, Non-condensing | |
| ORDERING INFORMATION | |||
| Model | CPU | Memory | Storage |
|---|---|---|---|
| IESP-3760S-L6G4-Z390 | Intel LGA1151 6/8/9th Gen Processor | 2 × DDR4 , Max 64GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 2280 |
| IESP-3760S-L6G4-Q670 | Intel LGA1700 12~14th Gen Processor | 2 × DDR5 , Max 128GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 2280 |
| IESP-3760F-L6G4-Z390 | Intel LGA1151 6/8/9th Gen Processor | 2 × DDR4 , Max 64GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 2280 |
| IESP-3760F-L6G4-Q670 | Intel LGA1700 12~14th Gen Processor | 2 × DDR5 , Max 128GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 2280 |
