Fanless Industrial Computer – 8th Gen. Core i3/i5/i7 U Processor & 2*PCI Slot
ICE-3281-8265U is a customizable fanless industrial BOX PC. It is designed for use in industrial environments that require rugged and reliable computing solutions.
The PC is equipped with an onboard Intel® Core™ i3-8145U/i5-8265U/i7-8565U processor, providing high performance for demanding applications. It supports up to 64GB of DDR4-2400MHz RAM, allowing for efficient multitasking and smooth operation.
In terms of storage, the PC has a 2.5" drive bay and an MSATA slot, providing options for both traditional hard drives and solid-state drives.
The PC offers a rich selection of I/O interfaces, including 6 COM ports, 8 USB ports, 2 GLAN ports, VGA, HDMI, and GPIO. These interfaces allow for easy connectivity with various peripherals and devices.
For expansion, the PC features two PCI expansion slots, which can support a PCIE X4 or 1 PCIE X1 card, providing flexibility for future upgrades and additional functionalities.
The power supply of the PC supports DC+9V~36V input in both AT and ATX mode, allowing for compatibility with different power sources and configurations.
The product comes with a warranty of either 3 or 5 years, ensuring peace of mind and support for any potential issues or defects.
Overall, the ICE-3281-8265U is a versatile and customizable industrial BOX PC that offers powerful performance, extensive connectivity options, and durability for various industrial applications.

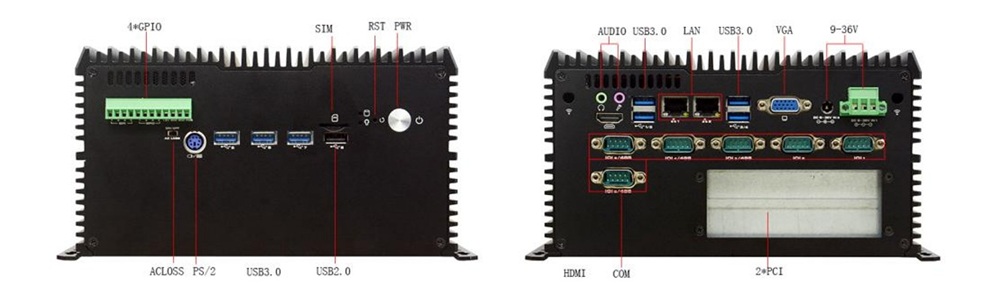

DIMENSION
| Fanless Industrial Computer – with 8th Gen. Core i3/i5/i7 U Processor | ||
| ICE-3281-8265U-2P6C8U | ||
| Industrial Fanless BOX PC | ||
| SPECIFICATION | ||
| Hardware Configuration | Processor | Onboard Intel® Core™ i3-8145U/i5-8265U/i7-8565U processor |
| BIOS | AMI BIOS | |
| Graphics | Intel® UHD Graphics for 8th Generation Intel® Processors | |
| Memory | 2 * SO-DIMM DDR4-2400MHz RAM Socket (Max. up to 64GB) | |
| Storage | 1 * 2.5″ SATA Driver Bay | |
| 1 * m-SATA Socket | ||
| Audio | 1 * Line-out & 1* Mic-in (Realtek HD Audio) | |
| Expansion | 2 * PCI Expansion Slot (1*PCI + 1*PCIE or 1*PCIE X4 + 1*PCIE X1) | |
| 1 * Mini-PCIe Socket For 4G Module | ||
| 1 * M.2 Key-E 2230 Socket for WIFI optional | ||
| 1 * M.2 Key-E 2242/52 For 5G Module | ||
| Watchdog | Timer | 0-255 sec., Programmable time to interrupt, to system reset |
| Rear I/O | Power Connector | 1 * 3-PIN Phoenix Terminal For DC IN |
| USB | 4 * USB3.0 | |
| COM | 6 * RS-232 (COM3~6: RS232/485, COM5~6: Support CAN) | |
| LAN | 2 * Intel I210AT GLAN, support WOL, PXE | |
| Audio | 1 * Audio Line-out, 1* Audio Mic-in | |
| Display Ports | 1 * VGA, 1 * HDMI | |
| DIO | 1 * 12-bit DIO (4*DI, 4*DO) | |
| Front I/O | PS/2 | 2 * PS/2 For Mouse & Keyboard |
| USB | 3 * USB3.0, 1 * USB2.0 | |
| DIO | 1 * 12-bit DIO (4*DI, 4*DO) | |
| SIM | 1 * SIM Slot | |
| Power Button | 1 * ATX Power Button | |
| Power | Power Input | DC 9V-36V Input |
| Power Adapter | Huntkey 12V@5A Power Adapter | |
| Chassis | Material | Full Aluminum Chassis |
| Dimension | L235*W192*H119mm | |
| Color | Black | |
| Environment | Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
| Others | Warranty | 3/5-Year 3-Year (Free for 1/2-year, Cost price for last 2/3-year) |
| Packing List | Industrial Fanless BOX PC, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/11th Gen. Core i3/i5/i7 U Series Processor | |
