GM45 Full Size CPU Card

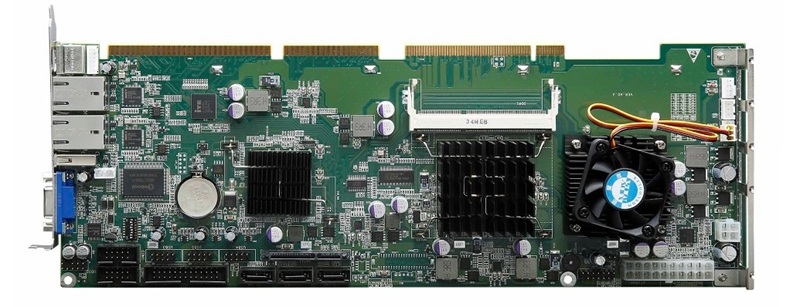

IESP-6545 is a PICMG1.0 full size CPU card with an onboard Intel Core 2 Duo Processor. It is equipped with an Intel 82GM45+ICH9M chipset and has one 240-Pin DDR3 RAM slot, which can support up to 4GB of memory. The card offers storage options that include one SATA port, one IDE port, and one floppy drive disk (FDD) connector.
IESP-6545 provides rich connectivity options with its multiple I/Os, including two RJ45 ports, VGA display output, HD audio, six USB ports, LPT, and PS/2. It also features a programmable watchdog with 256 levels and supports AT/ATX power supplies.
| IESP-6545(2LAN/2COM/6USB) | |
| GM45 Industrial Full Size CPU Card | |
|
SPCIFICATION |
|
|
CPU |
Onboard Intel Core 2 Duo Processor |
|
BIOS |
AMI BIOS |
|
Chipset |
Intel 82GM45+ICH9M |
|
Memory |
1 x 240Pin DDR3 Slot, Max up to 4GB |
|
Graphics |
Intel® GMA4500M HD Graphics, VGA & LVDS Display Output |
|
Audio |
AC97 (Support Line_Out, Line_In, MIC-In) |
|
LAN |
2 x RJ45 LAN (10/100/1000 Mbps) |
|
Watchdog |
256 levels (Programmable timer to interrupt & system reset) |
|
External I/O |
1 x VGA |
| 2 x RJ45 LAN | |
| 1 x PS/2 for MS & KB | |
| 1 x USB2.0 | |
|
On-board I/O |
2 x RS232 (1 x RS232/422/485) |
| 5 x USB2.0 | |
| 1 x SATA | |
| 1 x LPT | |
| 1 x IDE | |
| 1 x FDD | |
| 1 x Audio | |
| 1 x 8-bit DIO | |
| 1 x LVDS | |
|
Expansion |
PICMG1.0 |
|
Power Input |
AT/ATX |
|
Temperature |
Operation: -10°C to +60°C |
| Storage: -40°C to +80°C | |
|
Humidity |
5% – 95% relative humidity, non-condensing |
|
Dimensions |
L*W: 338x 122 (mm) |
