High Performance Machine Vision Industrial Computer – 6*GLAN & 1*PCI
The IESP-3316-H110 is a robust and high-performance industrial compact computer designed specifically for Automated Optical Inspection (AOI) applications. This device features an Intel desktop processor, 6*RJ45 GLAN interfaces, GPIO, and 16-bit opto-isolated DIO.
The GPIO and DIO provide flexible and customizable measurement and control capabilities to support diverse AOI equipment requirements. These functions are complemented by 4*LED light source interface and 4*external trigger input for light source control, further enhancing its suitability for AOI applications.
In addition, the industrial compact computer is built with a rugged and durable architecture that meets the most stringent industrial standards for operations in harsh environments. Its compact size makes it easy to install in tight spaces, and the metal housing provides excellent protection against physical damage and outdoor elements.
Overall, the IESP-3316-H110 offers high processing power, advanced connectivity, and versatile I/O features that enable seamless integration with different types of AOI equipment. It is a reliable and efficient solution for manufacturers looking to optimize their production processes and improve product quality control.

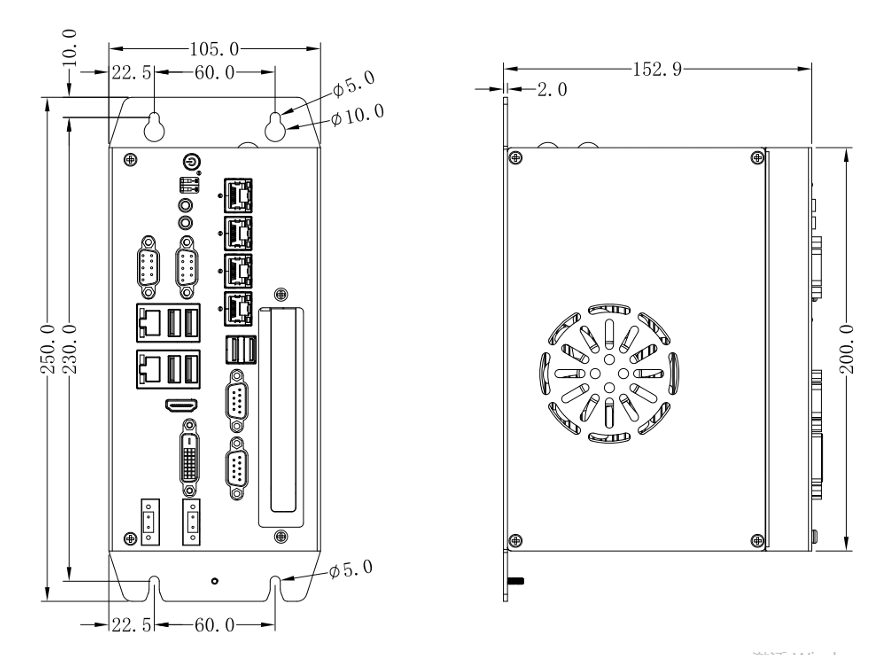

Dimension
| IESP-3317-H110 | ||
| Compact Industrial Computer | ||
|
SPECIFICATION |
||
|
Hardware Configuration |
Processor | LGA1151 CPU Socket, Intel 6/7/8/9th Core i3/i5/i7 Processor (TDP< 65W ) |
| Chipset | Intel H110 (Intel Q170 optional) | |
| Graphics | Integrated HD Graphic, DVI & HDMI Display Output | |
| RAM | 2 * 260Pin DDR4 SO-DIMM, 1866/2133/2666MHz DDR4, up to 32GB | |
| Storage | 1 * mSATA | |
| 1 * 7Pin SATA III | ||
| Audio | Realtek HD Audio, Support Line_Out / MIC | |
| Mini-PCIe | 1 * Full Size Mini-PCIe 1x Socket, support 3G/4G Communication Module | |
|
Hardware Monitoring |
Watchdog | 1 * Internal USB2.0 For Hardware Watchdog |
| Temp. Detect | Support CPU/Motherboard/HDD temp. detect | |
|
External I/O |
Power Interface | 1 * 2PIN Phoenix Terminal DC In, 1 * 2PIN Phoenix Terminal DC Out |
| Power Button | 1 * Power Button | |
| USB3.0 | 6 * USB 3.0 | |
| LAN | 6 * Intel 10/100/1000Mbs Ethernet (WGI 211-AT), 4*GLAN Support PXE & WOL & POE | |
| Serial Port | 4 * COM | |
| Display Ports | 1 * DVI & 1 * HDMI support 4K (Support Dual-Display) | |
|
Expansion |
PCIEX8/PCI | 1 * PCIE X8 or 1 * PCI |
|
Power |
Power Type | DC 12~24V Input (AT/ATX mode via jumper selection) |
|
Physical Characteristics |
Dimension | W105 x H150.9 x D200mm |
| Color | Black | |
|
Enviroment |
Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
|
Others |
Warranty | 5-Year (Free for 2-year, Cost price for last 3-year) |
| Packing List | Compact Industrial Computer, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Core i3/i5/i7 CPU | |
