High Performance Machine Vision Computer – 6*GLAN & 1*PCI & 16-Bit DIO

High Performance Machine Vision Computer – 6*GLAN & 1*PCI & 16-Bit DIO

Key Features:

• H110/Q170 Chipset

• High Performance Intel Core desktop precessor

• Rich I/Os: 6GLAN/4USB3.0/2COM/DVI/HDMI

• 1 * Internal USB For Hardware Watchdog

• 16bit opto-isolated DIO, LED light source interface

• Expansion: 1 * PCIE X8 or PCI Expansion

• Support 12~24V DC IN

• Provide Deep Custom Design Services


Overview

Specifications

Product Tags

The IESP-3316-H110 is a robust and high-performance industrial compact computer designed specifically for Automated Optical Inspection (AOI) applications. This device features an Intel desktop processor, 6*RJ45 GLAN interfaces, GPIO, and 16-bit opto-isolated DIO.

The GPIO and DIO provide flexible and customizable measurement and control capabilities to support diverse AOI equipment requirements. These functions are complemented by 4*LED light source interface and 4*external trigger input for light source control, further enhancing its suitability for AOI applications.

In addition, the industrial compact computer is built with a rugged and durable architecture that meets the most stringent industrial standards for operations in harsh environments. Its compact size makes it easy to install in tight spaces, and the metal housing provides excellent protection against physical damage and outdoor elements.

Overall, the IESP-3316-H110 offers high processing power, advanced connectivity, and versatile I/O features that enable seamless integration with different types of AOI equipment. It is a reliable and efficient solution for manufacturers looking to optimize their production processes and improve product quality control.

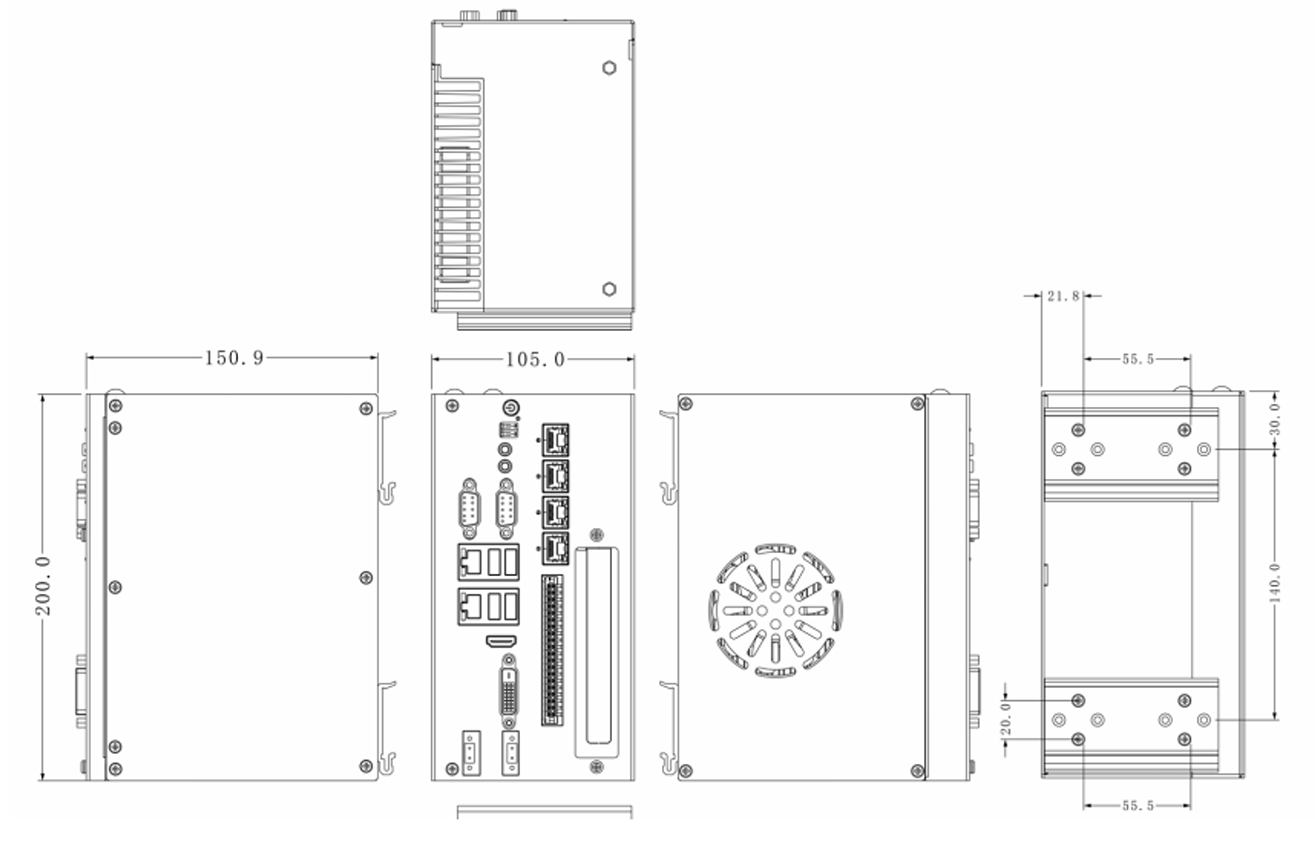

Dimension

IESP-3316-H110
IESP-3316-H110-6E2C4UP-2

  • Previous:
  • Next:

  • IESP-3316-H110
    Compact Industrial Computer

    SPECIFICATION

    Hardware Configuration

    Processor LGA1151 CPU Socket, Intel 6/7/8/9th Core i3/i5/i7 Processor (TDP< 65W )
    Chipset Intel H110  (Intel Q170 optional)
    Graphics Integrated HD Graphic, DVI & HDMI Display Output
    RAM 2 * 260Pin DDR4 SO-DIMM, 1866/2133/2666MHz DDR4, up to 32GB
    Storage 1 * mSATA
    1 * 7Pin SATA III
    Audio Realtek HD Audio, Support Line_Out / MIC
    Mini-PCIe 1 * Full Size Mini-PCIe 1x Socket, support 3G/4G Communication Module

    Hardware Monitoring

    Watchdog 1 * Internal USB2.0 For Hardware Watchdog
    Temp. Detect Support CPU/Motherboard/HDD temp. detect

    External I/O

    Power Interface 1 * 2PIN Phoenix Terminal DC In, 1 * 2PIN Phoenix Terminal DC Out
    Power Button 1 * Power Button
    USB3.0 4 * USB 3.0
    LAN 6 * Intel 10/100/1000Mbs Ethernet (WGI 211-AT), 4*GLAN Support PXE & WOL & POE
    Serial Port 2 * RS-232/422/485
    GPIO 16bit opto-isolated DIO
    LED 4-way LED light source interface, 4-way external trigger input of light source
    Display Ports 1 * DVI & 1 * HDMI support 4K   (Support Dual-Display)

    Expansion

    PCIEX8/PCI 1 * PCIE X8 or 1 * PCI

    Power

    Power Type DC 12~24V Input (AT/ATX mode via jumper selection)

    Physical Characteristics

    Dimension W105 x H150.9 x D200mm
    Color Black

    Enviroment

    Temperature Working Temperature: -20°C~60°C
    Storage Temperature: -40°C~80°C
    Humidity 5% – 90% Relative Humidity, non-condensing

    Others

    Warranty 5-Year (Free for 2-year, Cost price for last 3-year)
    Packing List Compact Industrial Computer, Power Adapter, Power Cable
    Processor Support Intel 6/7/8/9th Core i3/i5/i7 CPU
