High Performance Compact Industrial Computer – 2*GLAN
IESP-3304-H110 high-performance industrial compact computer designed for AOI (Automated Optical Inspection) with a desktop processor is a robust computing device built to perform intensive tasks related to AOI. These computers typically feature Intel desktop Core i3/i5/i7 processors, which provide fast processing speeds and can handle multiple applications simultaneously.
IESP-3304-H110 is typically designed with rugged components to withstand harsh industrial conditions, including shock, vibration, dust, and moisture. They also come equipped with advanced thermal management solutions, such as heat sinks, fans, to maintain optimal performance at all times.
IESP-3304-H110 computers are designed with a range of I/O interfaces, including multiple Ethernet ports, USB, RS-232/422/485, DVI/HDMI, and audio ports to allow for seamless connectivity to external devices and peripherals.
In summary, IESP-3304-H110 high-performance industrial compact computer designed for AOI with a desktop processor offers powerful computing capabilities that can handle demanding AOI tasks while providing reliable and consistent performance even in harsh industrial environments.

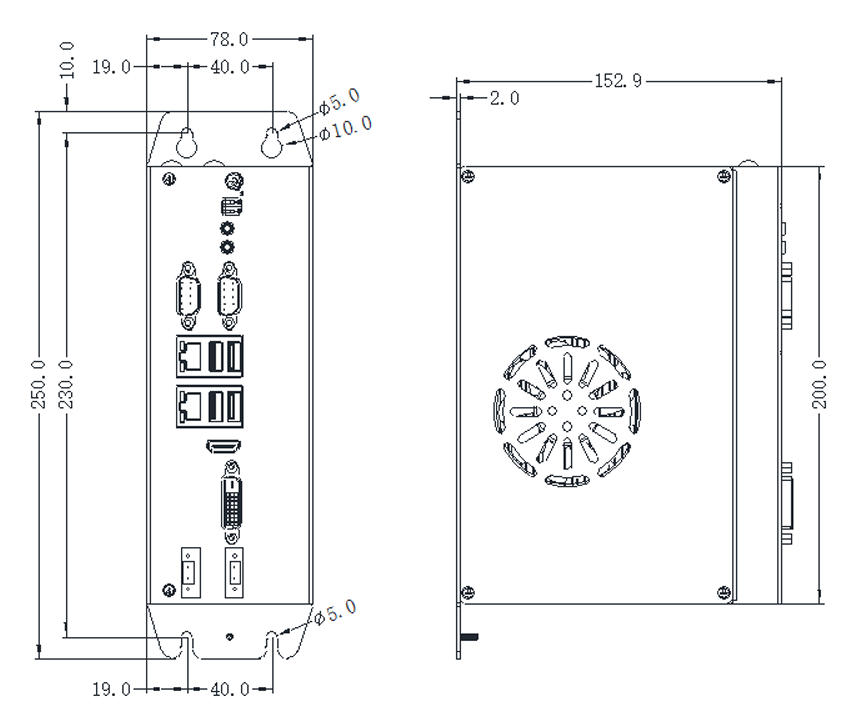

Dimension
| IESP-3304-H110 | ||
| Compact Industrial Computer | ||
|
SPECIFICATION |
||
|
Hardware Configuration |
Processor | LGA1151 CPU Socket, Intel 6/7/8/9th Core i3/i5/i7 Processor (TDP< 65W ) |
| Chipset | Intel H110 (Intel Q170 optional) | |
| Graphics | Integrated HD Graphic, DVI & HDMI Display Output | |
| RAM | 2 * 260Pin DDR4 SO-DIMM, 1866/2133/2666MHz DDR4, up to 32GB | |
| Storage | 1 * mSATA | |
| 1 * 7Pin SATA III | ||
| Audio | Realtek HD Audio, Support Line_Out / MIC | |
| Mini-PCIe | 1 * Full Size Mini-PCIe 1x Socket, support 3G/4G Communication Module | |
|
Hardware Monitoring |
Watchdog | 1 * Internal USB2.0 For Hardware Watchdog |
| Temp. Detect | Support CPU/Motherboard/HDD temp. detect | |
|
External I/O |
Power Interface | 1 * 2PIN Phoenix Terminal DC In, 1 * 2PIN Phoenix Terminal DC Out |
| Power Button | 1 * Power Button | |
| USB3.0 | 4 * USB 3.0 | |
| LAN | 2 * Intel 10/100/1000Mbs Ethernet (WGI 211-AT), Support PXE & WOL | |
| Serial Port | 2 * RS-232/422/485 | |
| GPIO | Null (16bit GPIO optional) | |
| Display Ports | 1 * DVI & 1 * HDMI support 4K (Support Dual-Display) | |
|
Power |
Power Type | DC 12~24V Input (AT/ATX mode via jumper selection) |
|
Physical Characteristics |
Dimension | W78 x H150.9 x D200mm |
| Color | Black | |
|
Enviroment |
Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
|
Others |
Warranty | 5-Year (Free for 2-year, Cost price for last 3-year) |
| Packing List | Compact Industrial Computer, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Core i3/i5/i7 CPU | |
