High Performance Fanless Box PC-Support 12th/14th Gen. Desktop CPU, 6*GLAN
The IESP-3750S-L6C4-Q670 is a powerful fanless industrial BOX PC designed to withstand rugged and demanding environments. It is compatible with 12th to 14th generation LGA1700 Celeron, Pentium, Core i3, i5, and i7 processors, ensuring efficient and high-performance computing.
This industrial computer features two SO-DIMM DDR5 RAM sockets, allowing for a maximum capacity of up to 128GB of RAM. This enables smooth multitasking and efficient data processing, even in demanding applications.
For storage, the IESP-3750S-L6C4-Q670 offers ample options with a 2.5" drive bay, MSATA slot, and M.2 Key-M socket. This allows for flexible storage configurations to cater to specific needs.
With a wide selection of I/O ports, including 4COM ports, 10USB ports, 5Gigabit LAN ports, 1VGA, 1*HDMI, and 14-channel GPIO, this industrial computer provides extensive connectivity options for various peripherals and devices.
The IESP-3750S-L6C4-Q670 supports DC+9V~36V input in both AT and ATX modes, ensuring compatibility with different power sources. This flexibility enables easy integration into different systems.
With a 3 or 5-year warranty, the IESP-3750S-L6C4-Q670 offers peace of mind and assurance of its reliability and durability in demanding industrial environments. Additionally, deep custom design services are available, allowing for tailored solutions to meet specific requirements and specifications.
Overall, the IESP-3750S-L6C4-Q670 is a robust and versatile industrial BOX PC that combines high performance, expandable storage, rich I/O options, and flexible power supply support. It is an ideal choice for industrial applications where reliability and performance are paramount.
| High Performance Fanless Multi-LAN Industrial PC | ||
| IESP-3750S-L6C4-G670 | ||
| LGA1700 12th/14th Gen (≤45W) | 4COM | 6LAN(4PoE) | ||
| SPECIFICATION | ||
| Chassis | Material/Structure | Aluminum Alloy |
| Color | Black | |
| Dimensions | 243*208*79mm | |
| Weight | 3.9kg | |
| Mounting | Desktop / Embedded | |
| Mainboard | CPU | Intel LGA1700 12th/14th Gen Processor |
| Chipset | Intel Q670 | |
| Memory | 2 × DDR5 SO-DIMM, Max 128GB | |

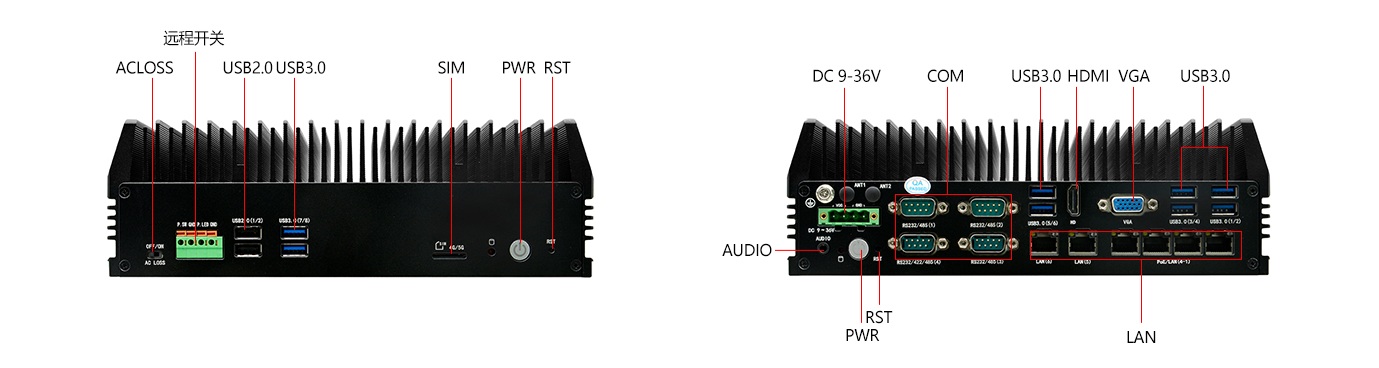

| Front Panel I/O | Switch | 1*Power Button with LED, 1*Reset Button, 1*ACLOSS |
| LED | 1*HDD LED | |
| USB | 2*USB3.0, 2*USB2.0, 1*Internal USB2.0 | |
| Remote Switch | 1*Power LED Signal, 1*Power Switch Signal (on 1*4P Phoenix) | |
| SIM | 1*SIM Card Slot | |
| Rear Panel I/O | Switch | 1*Power Button with LED, 1*Reset Button |
| LED | 1*HDD LED | |
| Display Ports | 1*VGA(1920*1200@60Hz), 1*HDMI1.4, Dual Display | |
| USB | 6*USB3.0 | |
| COM | 4*RS232/485 DB9, COM4 RS232/422/485 | |
| LAN | 6*Intel I210AT Gigabit Ethernet, 4*PoE/15W (Default PoE Off) | |
| Audio | 1*Audio, Line-out & MIC 2-in-1 | |
| DIP Switch | 2*6-bit DIP Switch, RS232/422/485 via DIP + Jumper + BIOS | |
| Power Connector | 1*4P(P=5.08mm) Phoenix, 9~36V Input, Max 220W | |
| Storage | SATA | 1*2.5″ HDD Bay (I/O Board) |
| mSATA | 1*mSATA (I/O Board) | |
| SSD | 1*M.2/SSD Key-M 2280, NVMe PCIe x4 SSD (Mainboard) | |
| Expansion | WiFi | 1*M.2 Key-E 2230, WiFi |
| 5G | 1*M.2 Key-B 3042/3052, 5G | |
| System Support | OS | Windows 10/11, Ubuntu |
| Power | Power Type | DC 9-36V Wide Voltage, Max 220W |
| Power Output | AC to DC 120W Above (Device Dependent) | |
| Environment | Operating Temperature | -10°C ~ 60°C |
| Relative Humidity | 5%-95% RH, Non-condensing | |
| ORDERING INFORMATION | |||
| Model | CPU Platform | Memory | Storage |
|---|---|---|---|
| IESP-3750S-L6C4-Z390 | Intel LGA1151 6/8/9th Gen Processor | 2 × DDR4, Max 64GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 SSD |
| IESP-3750S-L6C4-Q670 | Intel LGA1700 12~14th Gen Processor | 2 × DDR5, Max 128GB | 1*2.5″ HDD bay, 1*mSATA, 1*M.2 SSD |
