Industrial Fanless Box PC-Support 12th Gen. 12450H CPU, 6 GLAN (4*POE)
IESP-3250S-L6-12450H is a high-performance fanless industrial computer designed for demanding industrial applications. It features support for 10th, 11th, and 12th Gen. Intel Core i3/i5/i7 processors, providing powerful processing capabilities for industrial computing tasks.
This industrial computer comes with 2 SO-DIMM DDR4-2400MHz RAM sockets, allowing for a maximum memory capacity of up to 64GB. This ensures smooth multitasking and efficient processing of data-intensive applications.
In terms of storage, the IESP-3250S-L6-12450H offers flexibility with 1 2.5" drive bay, 1 MSATA slot, and 1 M.2 Key-M socket, enabling users to configure storage options according to their specific requirements.
The rich I/O options on this industrial computer include 2 COM ports, 6 USB ports, 5 Gigabit LAN ports (4 with PoE support), VGA, HDMI, and DIO ports, providing extensive connectivity for a variety of industrial peripherals and devices.
For power input, the IESP-3250S-L6-12450H supports DC+9V to 36V input in AT/ATX mode, ensuring reliable operation in industrial settings where power input may vary.
This industrial computer is compatible with operating systems such as Windows 10, Windows 11, and Linux, offering flexibility in choosing the preferred OS for specific industrial applications.
Additionally, the IESP-3250S-L6-12450H is available for OEM/ODM customization, allowing users to tailor the configuration to meet their specific industrial computing needs.
| Compact Fanless Multi-LAN Industrial PC – 12th Gen Intel Processor | ||
| IESP-3250S-L6-12450H | ||
| Intel i5-12450H Octa-core | 4COM | 6LAN(4PoE) | ||
| SPECIFICATION | ||
| Chassis | Material/Structure | Aluminum Alloy + Sheet Metal |
| Color | Black | |
| Dimensions | 219*192.6*75mm | |
| Weight | ~3.2kg | |
| Mounting | Desktop / Embedded | |
| Mainboard | CPU | Intel Core i5-12450H Octa-core (8C/12T, Base 2.0GHz, Turbo 4.4GHz, TDP 45W) |
| Chipset | Integrated (12th Gen Mobile Platform) | |
| Memory | 2*SODDR4, Max 64GB | |

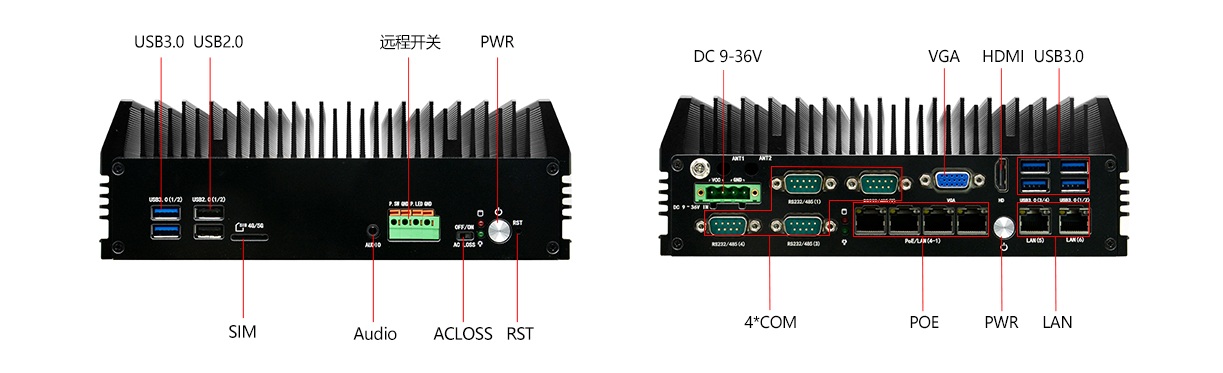

| Front Panel I/O | Switch | 1*Power Button, 1*One-key Recovery, 1*ACLOSS |
| LED | 1*Power LED, 1*HDD LED | |
| USB | 2*USB2.0, 2*USB3.0, 1*Internal USB2.0 | |
| Remote Switch | 1*Power LED, 1*Power Switch (on 1*4P Phoenix) | |
| Audio | 1*Audio, Line-out & Mic 2-in-1 | |
| SIM | 1*SIM Card Slot (Default M.2 5G) | |
| Rear Panel I/O | Display Ports | 1*HDMI1.4, 1*VGA, Dual Display |
| USB | 4*USB3.0 | |
| COM | 4*RS232 DB9, COM3~4 RS485/CAN (Module Required) | |
| LAN | 6*Intel I210AT Gigabit Ethernet, 4*PoE/15W per Port | |
| DIP Switch | 2*6-bit DIP Switch, COM3-4 RS232/485 via DIP | |
| Power Connector | 1*4P(P=5.08mm) Phoenix, 9~36V Input | |
| Storage | SSD (NVMe) | 1*M.2 Key-M 2280, NVMe PCIe x4 SSD |
| SSD (SATA) | 1*M.2 Key-M 2280, SATA SSD | |
| Expansion | WiFi/4G | 1*Mini-PCIe, WiFi+BT or 4G |
| 5G | 1*M.2 Key-B 3042/3052, 5G | |
| System Support | OS | Windows 10/11, Ubuntu |
| Power | Voltage Input | DC 9-36V Wide Voltage |
| Power Output | AC to DC 90W Above (Device Dependent) | |
| Environment | Operating Temperature | -10°C ~ 60°C |
| Relative Humidity | 5%-95% RH, Non-condensing | |
| ORDERING INFORMATION | |||
| Model | CPU | Memory | Storage |
|---|---|---|---|
| IESP-3250S-L6-3210M | i5-3210M Dual-core 2.5GHz | 2*SODDR3 Max 16GB | mSATA + M.2(SATA) |
| IESP-3250S-L6-7300HQ | i5-7300HQ Quad-core 2.5GHz | 2*SODDR4 Max 64GB | M.2 + M.2(SATA) |
| IESP-3250S-L6-7820HK | i7-7820HK Quad-core 2.9GHz | 2*SODDR4 Max 64GB | M.2 + M.2(SATA) |
| IESP-3250S-L6-8300H | i5-8300H Quad-core 2.3GHz | 2*SODDR4 Max 64GB | M.2 + M.2(SATA) |
| IESP-3250S-L6-12450H | i5-12450H Octa-core 2.0GHz | 2*SODDR4 Max 64GB | M.2 + M.2(SATA) |
