High Performance Machine Vision Computer – 6*GLAN & 16-Bit DIO
IESP-3306-H110 industrial compact computer is a device commonly used in automated optical inspection (AOI) systems. It is designed with high integration, ruggedness and durability to meet stringent industry standards and environmental requirements.
IESP-3306-H110 industrial compact computer is equipped with multiple Gigabit LAN interfaces (6GLAN), enabling high-speed data transfer and efficient connectivity across devices. These computers also feature various input/output (I/O) ports such as serial, USB and video ports for connectivity to different external devices.These advanced features enable the industrial compact computer to deliver optimal performance even in demanding AOI environments.
In summary, IESP-3306-H110 industrial compact computer can play a crucial role in AOI applications and other industrial contexts where automation, digitization, and smart manufacturing solutions are required. Its versatile functionality, durability, and high compatibility with various peripheral devices make it an ideal choice for many industrial automation settings.

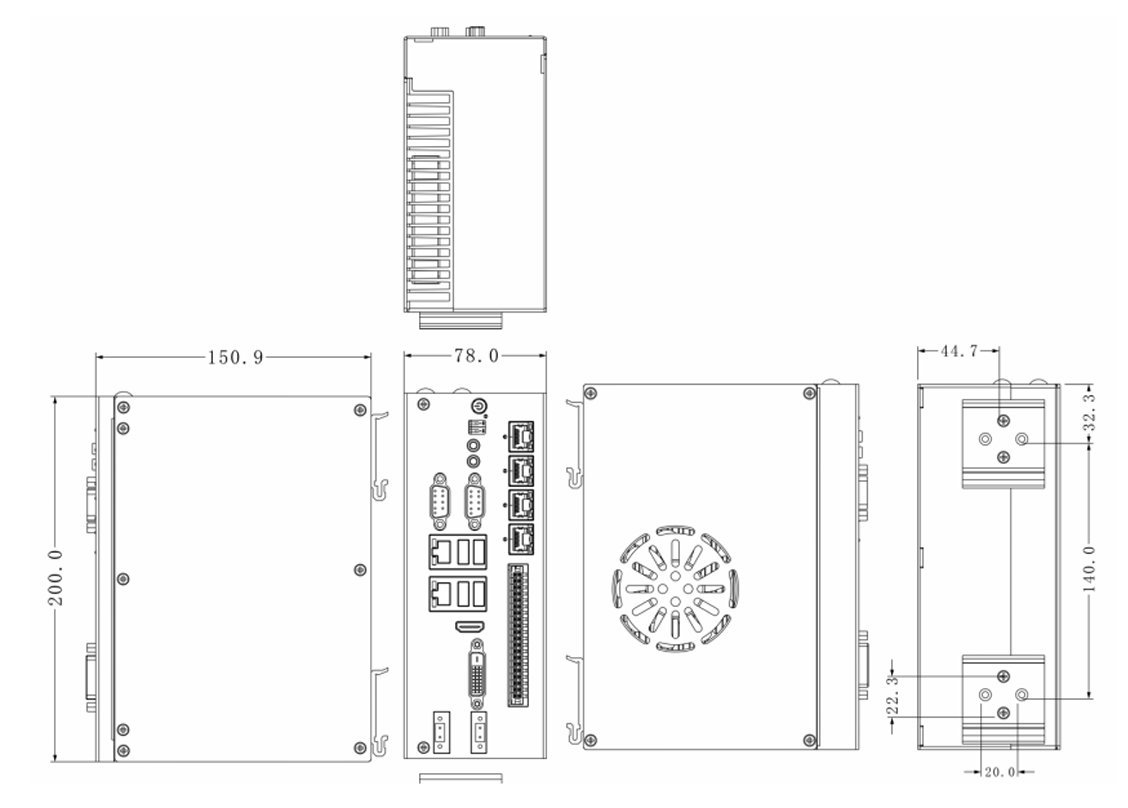

Dimension
| IESP-3306-H110 | ||
| Compact Industrial Computer | ||
|
SPECIFICATION |
||
|
Hardware Configuration |
Processor | LGA1151 CPU Socket, Intel 6/7/8/9th Core i3/i5/i7 Processor (TDP< 65W ) |
| Chipset | Intel H110 (Intel Q170 optional) | |
| Graphics | Integrated HD Graphic, DVI & HDMI Display Output | |
| RAM | 2 * 260Pin DDR4 SO-DIMM, 1866/2133/2666MHz DDR4, up to 32GB | |
| Storage | 1 * mSATA | |
| 1 * 7Pin SATA III | ||
| Audio | Realtek HD Audio, Support Line_Out / MIC | |
| Mini-PCIe | 1 * Full Size Mini-PCIe 1x Socket, support 3G/4G Communication Module | |
|
|
||
|
Hardware Monitoring |
Watchdog | 1 * Internal USB2.0 For Hardware Watchdog |
| Temp. Detect | Support CPU/Motherboard/HDD temp. detect | |
|
|
||
|
External I/O |
Power Interface | 1 * 2PIN Phoenix Terminal DC In, 1 * 2PIN Phoenix Terminal DC Out |
| Power Button | 1 * Power Button | |
| USB3.0 | 4 * USB 3.0 | |
| LAN | 6 * Intel 10/100/1000Mbs Ethernet (WGI 211-AT * 6), 4*GLAN Support PXE & WOL & POE | |
| Serial Port | 2 * RS-232/422/485 | |
| GPIO | 16bit opto-isolated DIO | |
| LED | 4-way LED light source interface, 4-way external trigger input of light source | |
| Display Ports | 1 * DVI & 1 * HDMI support 4K (Support Dual-Display) | |
|
|
||
|
Power |
Power Type | DC 12~24V Input (AT/ATX mode via jumper selection) |
|
|
||
|
Physical Characteristics |
Dimension | W78 x H150.9 x D200mm |
| Color | Black | |
|
|
||
|
Enviroment |
Temperature | Working Temperature: -20°C~60°C |
| Storage Temperature: -40°C~80°C | ||
| Humidity | 5% – 90% Relative Humidity, non-condensing | |
|
|
||
|
Others |
Warranty | 5-Year (Free for 2-year, Cost price for last 3-year) |
| Packing List | Compact Industrial Computer, Power Adapter, Power Cable | |
| Processor | Support Intel 6/7/8/9th Core i3/i5/i7 CPU | |
